Transformer Making Machine PLC Control Automatic Coil Winding Machine

Brand Name : STT

Model Number : ZPX1200

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Product name : automatic coil winding machine

Winding width : 1200mm, maximum

Motor power : 5.5kw

Speed : 0 ~ 80rpm

Servo motor : 0.75kw

Wire guide : 1 pc

Color : as requested

Warranty : 12 months

Contact Now

Transformer Making Machine PLC Control Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX1200

Transformer coil winding machine is a specialized transformer making machine, which is mainly used to wind wire coils. These wound coils can be used in transformers or other similar products. The automatic coil winding machine can wind both copper wires and aluminium wires. The coil winding machine is provided with one servo motor to drive wire guide to move for laying wire. The automatic coil winding machine is also provided with PLC and a touch screen, which makes the coil winding machine have high automation. It is very easy to operate the coil winding machine.

Features of automatic coil winding machine ZPX1200

slow starting
smooth running
optional color
big power
high automation
12 months warranty

Main Parameters of automatic coil winding machine ZPX1200

The following is the standard specifications of automatic coil winding machine ZPX1200 and the machine can also be manufactured as requested.

Center Height From Floor:	900mm
Winding Square Shaft Size:	50x50x1500mm
Maximum Winding Width:	1200mm
Winding Power:	5.5kw
Winding Speed:	0 ~ 160 rpm
Regulation:	stepless speed regulation
Max. Flat Wire Size:	5X12mm
Round Wire Diameter:	Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.:	Φ800mm
Maximum Capacity:	800kg
Counting Mode:	5-digit counting
Max. Numbers of Turns Preset:	9999.9
Counting Turn Range:	0 ~ 9999.9

Transformer Making Machine PLC Control Automatic Coil Winding Machine

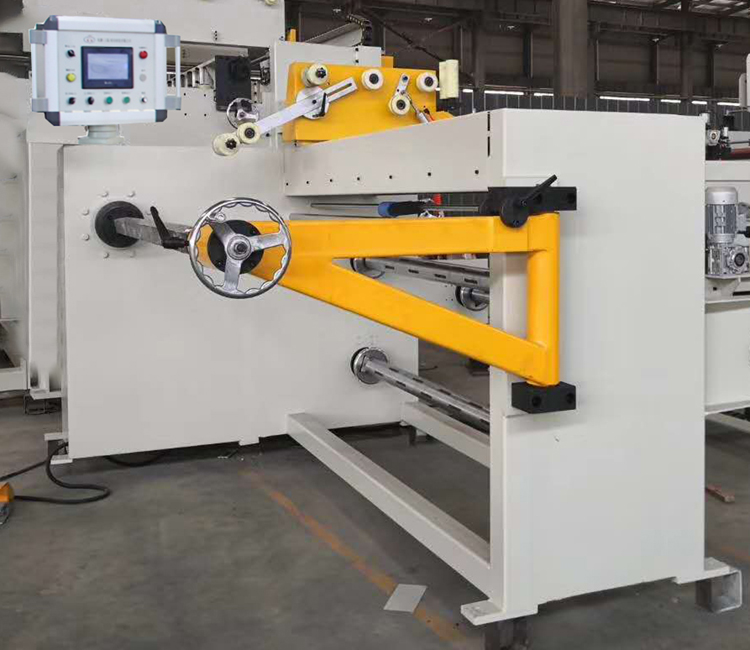

Fig 1: Automatic coil winding machine ZPX1200's front view

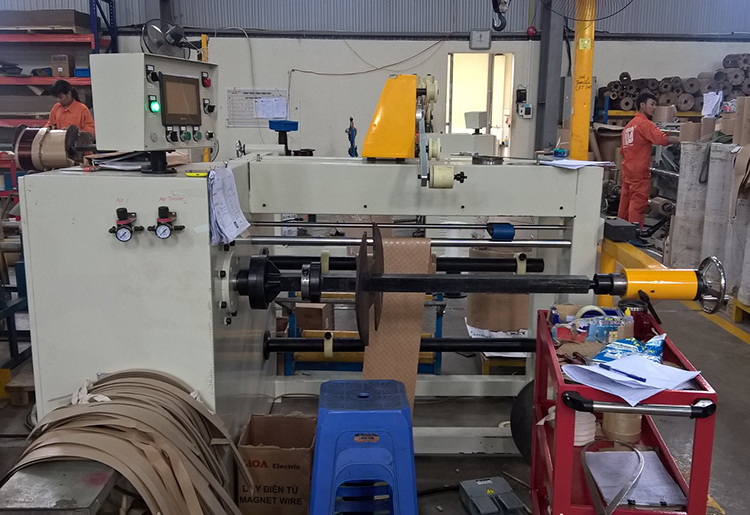

Fig 2: Automatic coil winding macihne ZPX1200's side view
