Description of automatic coil winding machine ZPX400
Automatic coil winding machine ZPX400 is professional transformer winding machine. The automatic coil winding machine can wind both copper wire and aluminium wire, which can make transformer coils and other similar products. The automatic coil winding machine is provided with winding motor, wire guide driven by servo motor, PLC control system, servo motor, touch screen and so on. With HMI and PLC, the automatic coil winding machine features easy operation, high automation, and so on.
Quick details of automatic coil winding machine ZPX400
- 900mm center height from floor
- Maximum 400 winding width
- Winding speed 0 - 200rpm
- Rotating diameter 800mm
- Winding power 3kw
- Servo motor power 0.75kw
Main parameters of automatic coil winding machine ZPX400
The typical standard specifications of coil winding machine ZPX400 are as following and the coil winding machine can also be manufactured as requested.
| Center height: | 900mm |
| Square Shaft Size: | 40x40x700mm |
| Maximum Winding Width: | 400mm |
| Servo Motor Power: | 0.75kw |
| Rotating Speed: | 0 ~ 200 rpm |
| Motor Power: | 3kw |
| Regulating Speed: | stepless speed regulation |
| Flat Wire Size: | Maximum 5X12mm |
| Round Wire Diameter: | ∅0.3 ~ 5.0mm |
| Rotating OD.: | ∅800mm max |
| Maximum Capacity: | 500kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 ~ 9999.9 |

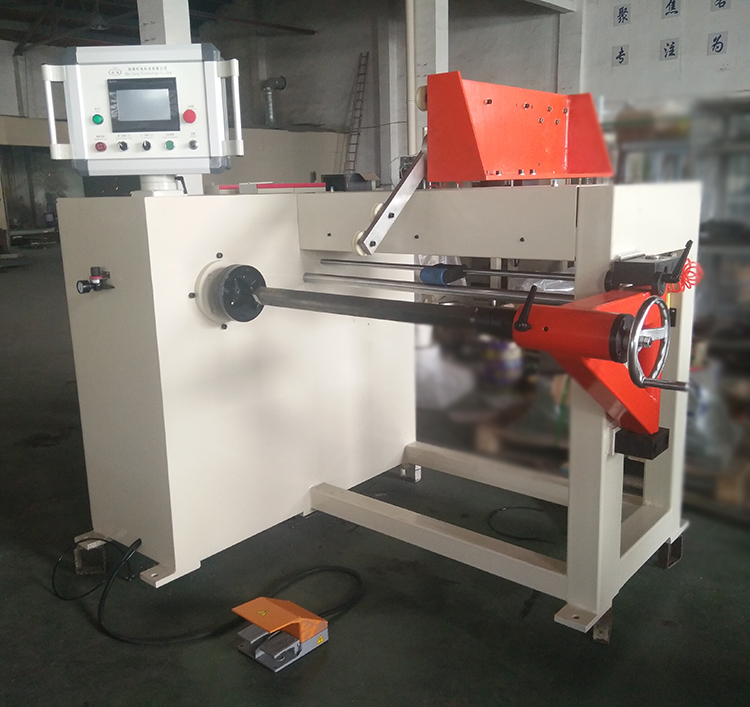

Fig 1: Automatic coil winding machine ZPX400's front view

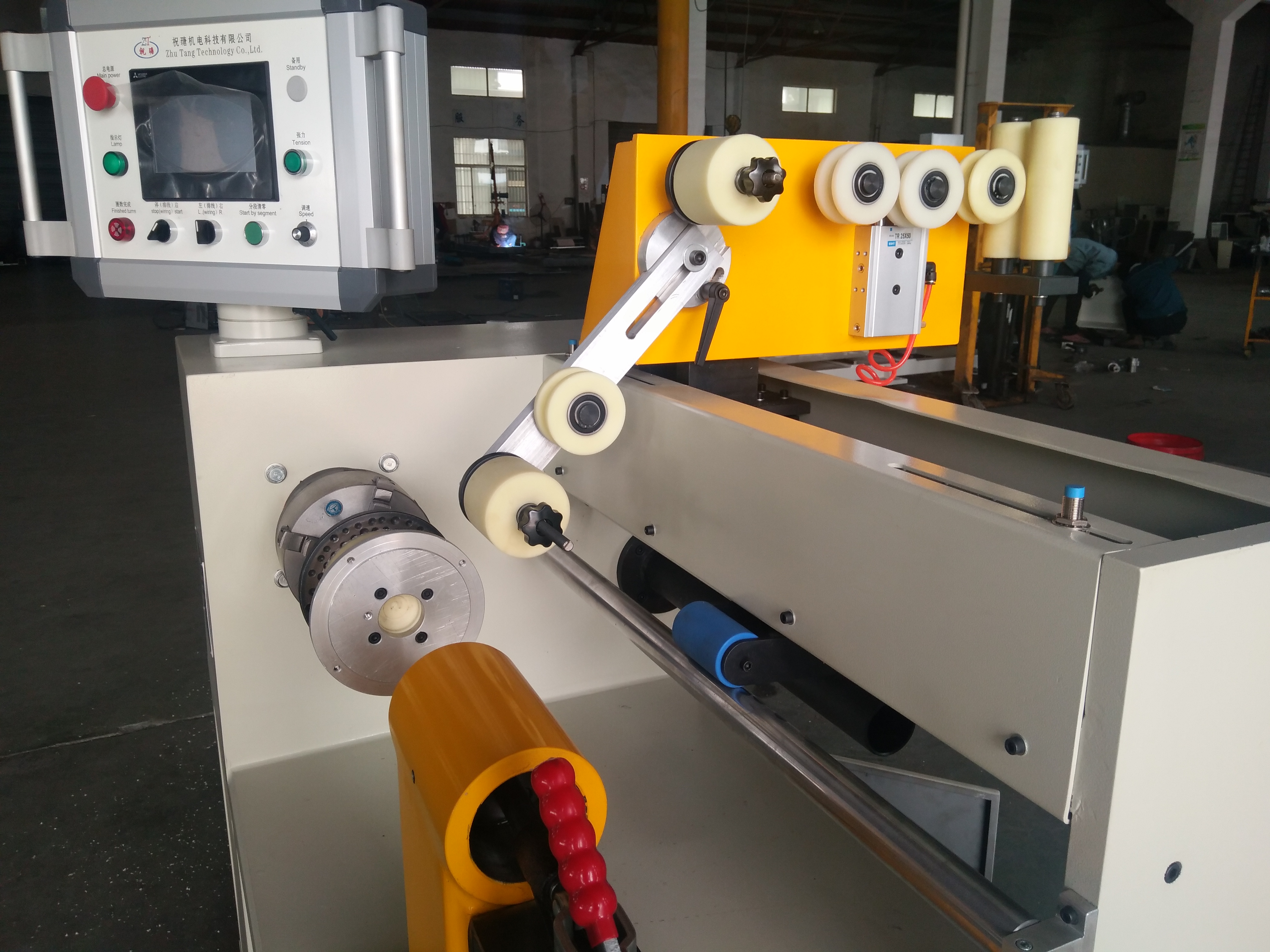

Fig 2: Automatic coil winding machine ZPX400's wire guide
