Factory Price PLC Control Wire Coil Winder Oil Transformer Winding Machine
Description of automatic coil winding machine ZPX800
Automatic coil winding machine ZPX800 is an special winding equipment and manufacturing machinery for making transformer coils and other similar products. The automatic coil winding machine can wind copper wire and aluminium wire. The maximum height of coil the automatic coil winding machine can wind is 800mm. One servo motor is adopted to drive the wire guide, which guarantees the wire guide to move precisely. The automatic coil winding machine is provided with a touch screen, and all parameters can be entered through the screen, which make the winding be operated easily.
Features of automatic coil winding machine ZPX800
easy operation, slow starting, smooth running, full function, high automation, etc.
Main parameters of automatic coil winding machine ZPX800
The typical standard specifications of automatic coil winding machine ZPX800 is as following, however, the coil winding machine can also be manufactured as requested.
| Center Height: | 900mm |
| Winding Shaft Size: | 40x40x1100mm |
| Maximum Winding Width: | 800mm |
| Winding Motor: | 4kw |
| Winding Speed: | 0 ~ 160 rpm |
| Speed Regulation: | stepless |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | Ø0.3mm ~ Ø5.0mm |
| Maximum Wound Coil OD.: | 800mm |
| Maximum Capacity: | 700kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 ~ 9999.9 |

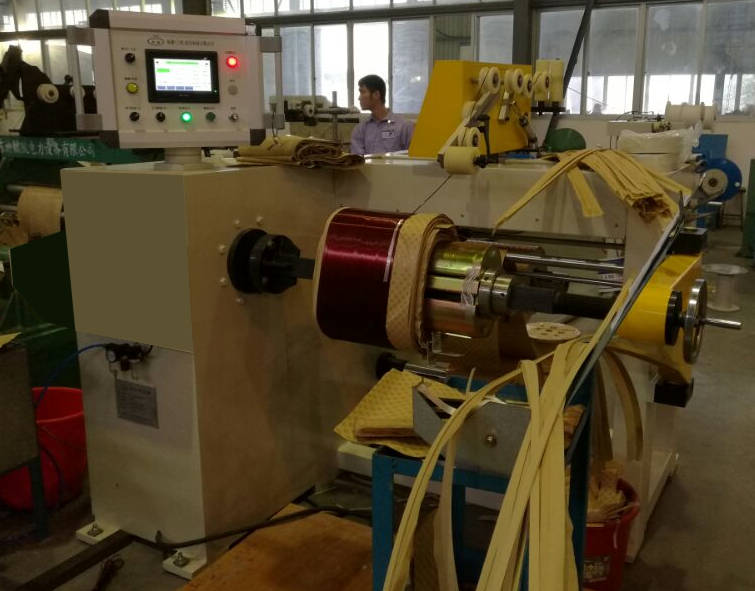

Fig 1: Automatic coil winding machine ZPX800's front view

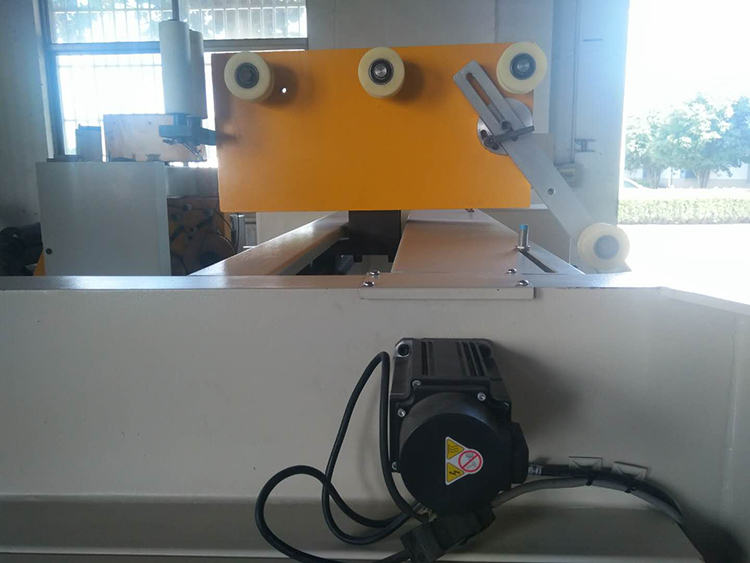

Fig 2: Automatic coil winding machine ZPX800's wire guide
