Automatic PLC Transformer Coil Winding Machine 11kw

Automatic Máquina de bobinado Transformer Coil Winding Machine Winding Three Coils

Description of transformer coil winding machine ZPX400-3

Transformer coil winding machine ZPX400-3 can be used to wind flat wire and round wire, the wires include copper wire and aluminium wire. The transformer coil winding machine can wind three coils at the same time, and the maximum coil height is 400mm. The maximum winding speed of the machine is 160rpm. With a touch screen, the transformer coil winding machine is very easy to be operated.

Main features of transformer coil winding machine ZPX400-3

• Exact reversible winding counting
• Widely used, can be used to wind different specifications of wire
• PLC control system guarantees the machine’s action precise
• Driven by AC servo motor guarantees excellent start and stop action of wire guide
• Simple operation, accuracy and reliability, touch screen is very intuitional
• Full function, having many functions, such as counting, memory, counting reverse, etc.
• High automation, programmable feature guarantees high automation
• Slow starting, this is for safe

Technical Parameters of transformer coil winding machine ZPX400-3

Typical standard specifications of transformer coil winding machine ZPX400-3 are shown below, however these can be easily modified as requested.

Fig 1: Transformer coil winding machine ZPX400-3's front view

rr

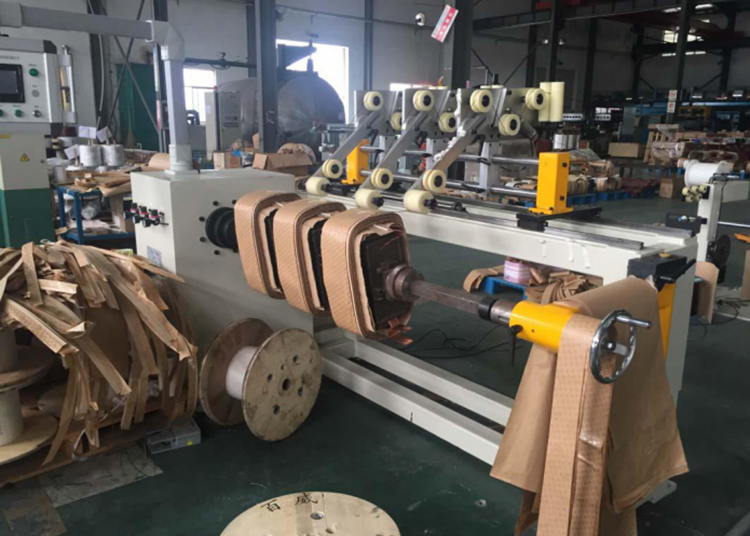

Fig 2: Transformer coil winding machine ZPX400-3's wire guide
